How To Install the Apache Web Server on Ubuntu 22.04

Introduction

The Apache HTTP server is the most widely-used web server in the world. It provides many powerful features including dynamically loadable modules, robust media support, and extensive integration with other popular software.

In this guide, you’ll learn how to install an Apache web server on your Ubuntu 22.04 server.

Prerequisites

Before you begin this guide, you will need an Ubuntu 22.04 server set up with a non-root user with sudo privileges and a firewall enabled to block non-essential ports. You can learn how to do this by following our Initial server setup guide for Ubuntu 22.04.

Once you’re done setting this up, log in as your non-root user and proceed to the first step.

Step 1 — Installing Apache

Apache is available within Ubuntu’s default software repositories, making it possible to install it using conventional package management tools.

Begin by updating the local package index to reflect the latest upstream changes:

sudo apt update

Then, install the apache2 package:

sudo apt install apache2

After confirming the installation, apt will install Apache and all required dependencies.

Step 2 — Adjusting the Firewall

Before testing Apache, it’s necessary to modify the firewall settings to allow outside access to the default web ports. If you followed the instructions in the prerequisites, you should have a UFW firewall configured to restrict access to your server.

During installation, Apache registers itself with UFW to provide a few application profiles that can be used to enable or disable access to Apache through the firewall.

List the ufw application profiles by running the following:

sudo ufw app list

Your output will be a list of the application profiles:

Output
Available applications:
  Apache
  Apache Full
  Apache Secure
  OpenSSH

As indicated by the output, there are three profiles available for Apache:

• Apache: This profile opens only port 80 (normal, unencrypted web traffic)
• Apache Full: This profile opens both port 80 (normal, unencrypted web traffic) and port 443 (TLS/SSL encrypted traffic)
• Apache Secure: This profile opens only port 443 (TLS/SSL encrypted traffic)

It is recommended that you enable the most restrictive profile that will still allow the traffic you’ve configured. Since you haven’t configured SSL for your server yet in this guide, you’ll only need to allow traffic on port 80:

sudo ufw allow 'Apache'

You can verify the change by checking the status:

sudo ufw status

The output will provide a list of allowed HTTP traffic:

Output
Status: active

To                         Action      From
--                         ------      ----
OpenSSH                    ALLOW       Anywhere
Apache                     ALLOW       Anywhere
OpenSSH (v6)               ALLOW       Anywhere (v6)
Apache (v6)                ALLOW       Anywhere (v6)

As indicated by the output, the profile has been activated to allow access to the Apache web server.

Step 3 — Checking your Web Server

At the end of the installation process, Ubuntu 22.04 starts Apache. The web server will already be up and running.

Make sure the service is active by running the command for the systemd init system:

sudo systemctl status apache2

Output
● apache2.service - The Apache HTTP Server
     Loaded: loaded (/lib/systemd/system/apache2.service; enabled; vendor prese>
     Active: active (running) since Tue 2022-04-26 15:33:21 UTC; 43s ago
       Docs: https://httpd.apache.org/docs/2.4/
   Main PID: 5089 (apache2)
      Tasks: 55 (limit: 1119)
     Memory: 4.8M
        CPU: 33ms
     CGroup: /system.slice/apache2.service
             ├─5089 /usr/sbin/apache2 -k start
             ├─5091 /usr/sbin/apache2 -k start
             └─5092 /usr/sbin/apache2 -k start

As confirmed by this output, the service has started successfully. However, the best way to test this is to request a page from Apache.

You can access the default Apache landing page to confirm that the software is running properly through your IP address. If you do not know your server’s IP address, you can get it a few different ways from the command line.

Try writing the following at your server’s command prompt:

hostname -I

You will receive a few addresses separated by spaces. You can try each in your web browser to determine if they work.

Another option is to use the free icanhazip.com tool. This is a website that, when accessed, returns your machine’s public IP address as read from another location on the internet:

curl -4 icanhazip.com

When you have your server’s IP address, enter it into your browser’s address bar:

http://your_server_ip

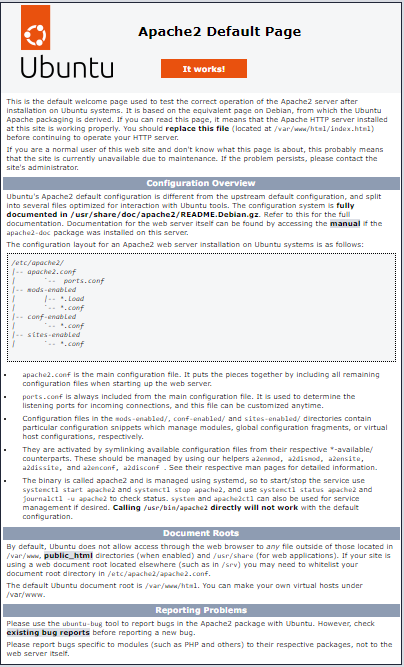

You will see the default Ubuntu 22.04 Apache web page as in the following:

This page indicates that Apache is working correctly. It also includes some basic information about important Apache files and directory locations.

Step 4 — Managing the Apache Process

Now that you have your web server up and running, let’s review some basic management commands using systemctl.

To stop your web server, run:

sudo systemctl stop apache2

To start the web server when it is stopped, run:

sudo systemctl start apache2

To stop and then start the service again, run:

sudo systemctl restart apache2

If you are simply making configuration changes, Apache can often reload without dropping connections. To do this, use the following command:

sudo systemctl reload apache2

By default, Apache is configured to start automatically when the server boots. If this is not what you want, disable this behavior by running:

sudo systemctl disable apache2

To re-enable the service to start up at boot, run:

sudo systemctl enable apache2

Apache will now start automatically when the server boots again.

Step 5 — Setting Up Virtual Hosts (Recommended)

When using the Apache web server, you can use virtual hosts (similar to server blocks in Nginx) to encapsulate configuration details and host more than one domain from a single server. We will set up a domain called your_domain, but you should replace this with your own domain name.

Apache on Ubuntu 22.04 has one server block enabled by default that is configured to serve documents from the /var/www/html directory. While this works well for a single site, it can become unwieldy if you are hosting multiple sites. Instead of modifying /var/www/html, create a directory structure within /var/www for a your_domain site, leaving /var/www/html in place as the default directory to be served if a client request doesn’t match any other sites.

Create the directory for your_domain as follows:

sudo mkdir /var/www/your_domain

Next, assign ownership of the directory to the user you’re currently signed in as with the $USER environment variable:

sudo chown -R $USER:$USER /var/www/your_domain

The permissions of your web root should be correct if you haven’t modified your umask value, which sets default file permissions. To ensure that your permissions are correct and allow the owner to read, write, and execute the files while granting only read and execute permissions to groups and others, you can input the following command:

sudo chmod -R 755 /var/www/your_domain

Next, create a sample index.html page using nano or your favorite editor:

sudo nano /var/www/your_domain/index.html

Inside, add the following sample HTML:

<html>
    <head>
        <title>Welcome to Your_domain!</title>
    </head>
    <body>
        <h1>Success!  The your_domain virtual host is working!</h1>
    </body>
</html>

Save and close the file when you are finished. If you’re using nano, you can do this by pressing CTRL + X, then Y and ENTER.

In order for Apache to serve this content, it’s necessary to create a virtual host file with the correct directives. Instead of modifying the default configuration file located at /etc/apache2/sites-available/000-default.conf directly, make a new one at /etc/apache2/sites-available/your_domain.conf:

sudo nano /etc/apache2/sites-available/your_domain.conf

Add in the following configuration block, which is similar to the default, but updated for your new directory and domain name:

<VirtualHost *:80>
    ServerAdmin webmaster@localhost
    ServerName your_domain
    ServerAlias www.your_domain
    DocumentRoot /var/www/your_domain
    ErrorLog ${APACHE_LOG_DIR}/error.log
    CustomLog ${APACHE_LOG_DIR}/access.log combined
</VirtualHost>

Notice that we’ve updated the DocumentRoot to our new directory and ServerAdmin to an email that the your_domain site administrator can access. We’ve also added two directives: ServerName, which establishes the base domain that will match this virtual host definition, and ServerAlias, which defines further names that will match as if they were the base name.

Save and close the file when you are finished.

Now enable the file with the a2ensite tool:

sudo a2ensite your_domain.conf

Disable the default site defined in 000-default.conf:

sudo a2dissite 000-default.conf

Next, test for configuration errors:

sudo apache2ctl configtest

You should receive the following output:

Output
. . .
Syntax OK

Restart Apache to implement your changes:

sudo systemctl restart apache2

Apache will now be serving your domain name. You can test this by navigating to http://your_domain, where you will see something like the following:

Step 6 – Getting Familiar with Important Apache Files and Directories

Now that you know how to manage the Apache service itself, you should take a few minutes to familiarize yourself with a few important directories and files.

Content

• /var/www/html: The actual web content, which by default only consists of the default Apache page you saw earlier, is served out of the /var/www/html directory. This can be changed by altering Apache configuration files.

Server Configuration

• /etc/apache2: The Apache configuration directory. All of the Apache configuration files reside here.
• /etc/apache2/apache2.conf: The main Apache configuration file. This can be modified to make changes to the Apache global configuration. This file is responsible for loading many of the other files in the configuration directory.
• /etc/apache2/ports.conf: This file specifies the ports that Apache will listen on. By default, Apache listens on port 80 and additionally listens on port 443 when a module providing SSL capabilities is enabled.
• /etc/apache2/sites-available/: The directory where per-site virtual hosts can be stored. Apache will not use the configuration files found in this directory unless they are linked to the sites-enabled directory. Typically, all server block configuration is done in this directory and then enabled by linking to the other directory with the a2ensite command.
• /etc/apache2/sites-enabled/: The directory where enabled per-site virtual hosts are stored. Typically, these are created by linking to configuration files found in the sites-available directory with the a2ensite. Apache reads the configuration files and links found in this directory when it starts or reloads to compile a complete configuration.
• /etc/apache2/conf-available/, /etc/apache2/conf-enabled/: These directories have the same relationship as the sites-available and sites-enabled directories but are used to store configuration fragments that do not belong in a virtual host. Files in the conf-available directory can be enabled with the a2enconf command and disabled with the a2disconf command.
• /etc/apache2/mods-available/, /etc/apache2/mods-enabled/: These directories contain the available and enabled modules, respectively. Files ending in .load contain fragments to load specific modules, while files ending in .conf contain the configuration for those modules. Modules can be enabled and disabled using the a2enmod and a2dismod commands.

Server Logs

• /var/log/apache2/access.log: By default, every request to your web server is recorded in this log file unless Apache is configured to do otherwise.
• /var/log/apache2/error.log: By default, all errors are recorded in this file. The LogLevel directive in the Apache configuration specifies how much detail the error logs will contain.

Conclusion

Now that you have your web server installed, you have many options for the type of content you can serve and the technologies you can use to create a richer experience.

If you’d like to build out a more complete application stack, you can read this article on how to configure a LAMP stack on Ubuntu 22.04
